Description
| Item | Specification | |
|---|---|---|
| CPU | Intel J1900 | Intel® Celeron® J1900 (2.0 GHz) Quad-Core Processor / Fanless |
| Main | Memory | 4GB Standard DDR3L 1600 MT/s, Socket 1 x SODIMM (up to 8GB) |
| Storage | M.2 SSD64 (Option : 2.5″ SATA-Ⅱ 320GB HDD & SSD(64GB/128GB) | |
| Primary Display | LCD | 11.6″ TFT LED Backlight |
| Resolution | 1024 x 768 | |
| Touch | Projective Capacitive Touch 10Point | |
| Speaker | 1 x 1W | |
| USB | 4 (Rear4, Back 2, USB 2.0 x 6), 4 internal (Reserved for MSR, SCR, i-Button/Touch Controller) | |
| Serial | 1 x COM Port 5V/12V Power Output | |
| LAN | 1 x Gigabit Ethernet, RJ-45 | |
| VGA | 1 x VGA (With Power Output) | |
| Audio | 1 x Line-out | |
| Power | DC-IN | 1 x (4 Pin Connector) |
| 12V OUT(2nd Display Power) | ||
| User Environment | Temperature | Operating -25℃ to 65℃, Storage -35℃ to 75℃ |
| Size | Dimension | 414 x 251 x 361 mm (W x D x H) |
| Weight | 5.6kg | |
| Optional Peripherals | MSR | ISO Ⅱ Track Reading |
| OS | Windows 7, 10, POSReady7, Windows 10 LoT Entry | |
| 2nd Display | 9.7″ TFT LCD(1024 x 768) | |

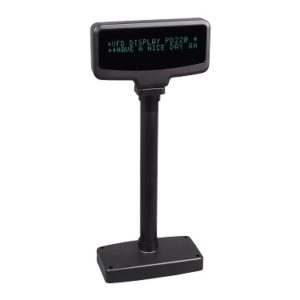

| 20×2 Line VFD | ||
